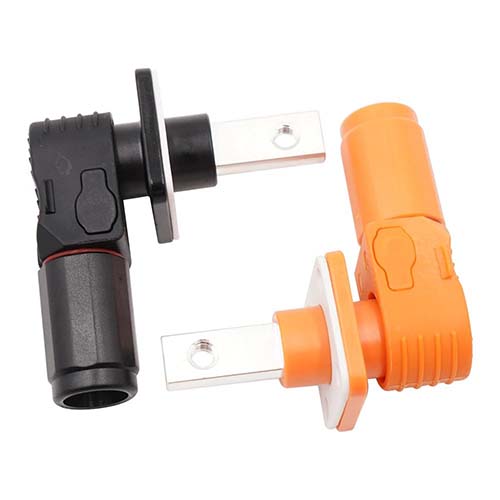

ESC-HP400 Electrical Energy Storage Connector Anti-electric Shock

Application

● Power transmission of energy storage system (battery pack).

Description

1. Anti-electric shock protection Touch-proof

2. Forehead color / key position foolproof Poka-yoke: Orange for positive, Black for negative

3. 360-degree rotation and insertion

4. Lock mode: Switch button

Specification

1. Number of pins: 1

2. Current Rating: 350A(95mm²), 400A(120mm²)

3. Voltage Rating: 1500V DC

4. Dielectric withstanding voltage: 6800V DC

5. Insulation Resistance: ≥100M Ω

6. Operating temperature Range: -40°C~+125°C

7. Cable range: 95mm²-120mm²

8. Low temperature rise: ≤45K

9. Protection level IP Code: IP67/IP40 (optional)

10. Socket protection Class: IP67/IP40 (optional)

11. Mechanical Life: 200 times

12. Certification: CE, UL4128

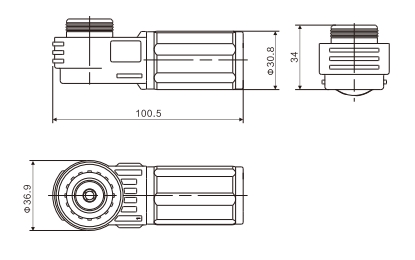

ESC-HP400 Plug

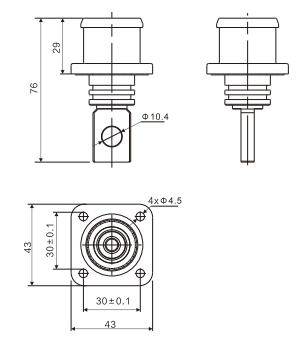

ESC-HP400 Socket

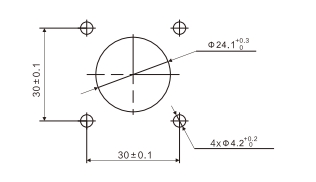

ESC-HP400 Installation Opening Dimensions
