ESC-HP300 360° Rotationand Insertion Electrical Connector

Application

●Power transfer from energy storage systems (battery packs).

ESC-HP300 Electrical Connector Description

1. Anti-electric shock protection Touch-proof

2. Color/Key Poka-yoke: Orange for positive, Black for negative

3. 360° Rotationand insertion

4. Wire diameter Cable range: 70mm²~95mm²

5. Low temperature rise：≤45K

6. Lock mode: Switch button

Parameters

1. Number of cores: 1

2. Rated Current Rating: 250A(70mm²), 300A(95mm²)

3. Rated Voltage Rating:1500VDC

4. Dielectric Withstanding Voltage：6800V DC

5. Insulation Resistance：≥100M Ω

6. Operating Temperature Range:-40℃-+125℃.

7. Protection level IP Code: IP67/IP40 (optional)

8. Socket protection class: IP67/IP40 (optional)

9. Mechanical Life: 200 times

10. Certification: CE, UL4128

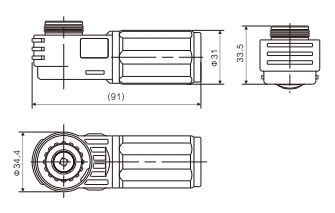

ESC-HP300 Plug

ESC-HP300 Socket

ESC-HP300 Installation Opening Dimensions
