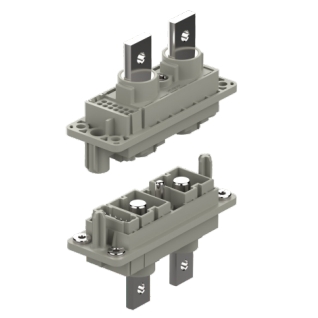

YGC1268 Power Signal Mixed Connector Screw Locking 15 Pins

Application

Power and signal transmission of energy storage equipment (battery pack)

YGC1268 Power Signal Mixed Connector Description

• Mixed power signal installation

• Floating installation

• Low plugging force: ≤100N

• Low temperature rise: ≤30K

• Termination Methods: Screw locking

Specification

• Number of Pins: 2+1+12

• Current Rating: 250A(80mm²), 80A(16mm²), 10A(0.14-2.5mm²)

• Voltage Rating: 600V/250V DC

• Dielectric Withstanding Voltage: 2500V/1500V DC

• Insulation Resistance: ≥500MΩ

• Temperature Range: -45℃~+125℃

• Protection level IP Code: IPXXB

• Mechanical Life: 500 times

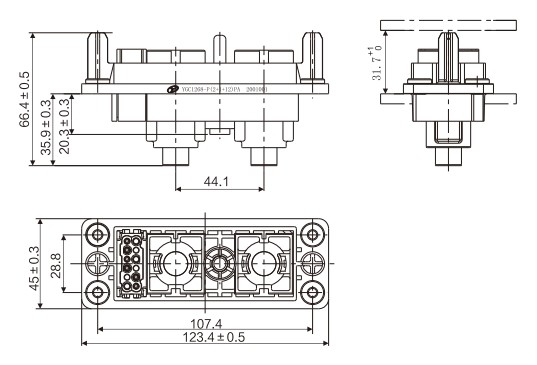

YGC1268-S (2+1+12) R Plug

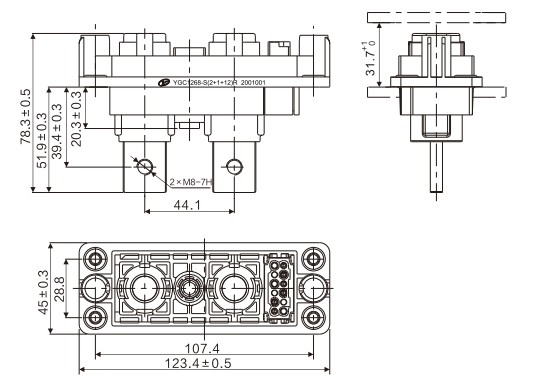

YGC1268-S (2+1+12)R Socket

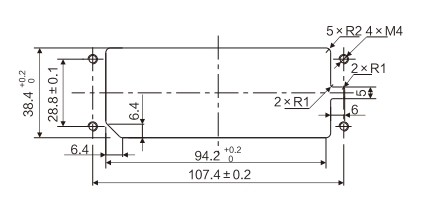

YGC1268-S (2+1+12) R Plug Mounting Opening Dimensions

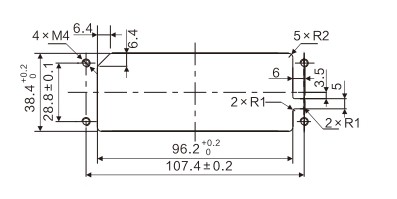

YGC1268-S (2+1+12)R Socket Mounting Opening Dimensions
