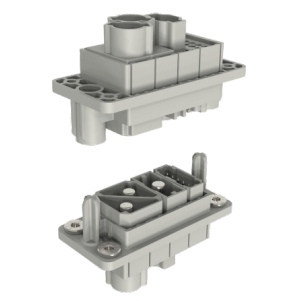

ESC-M16B-(3C150+12C10) Electrical Connector 15 Pins 4 Modules

Application

Power and signal transmission of household energy storage system (battery pack).

ESC-M16B-(3C150+12C10) Connector Description

1. Multi-functional modules are supported

2. Number of modules: 4

3. Floating tolerance: ±2mm

4. Cable range: 25mm²-35mm²/0.14mm2-2.5mm²

5. Low temperature rise: ≤45K

6. Termination Methods: Crimp termination

Parameters Specification

1. Number of Pins: 3+12

2. Current Rating: 150A/10A

3. Voltage Rating: 1500V/250V

4. Dielectric Withstanding Voltage: 6800V/2210V AC

5. Insulation Resistance: ≥100MΩ

6. Operating Temperature Range: -40℃~+125℃

7. Mechanical Life: 500 times

8. Certification: CE, UL1977

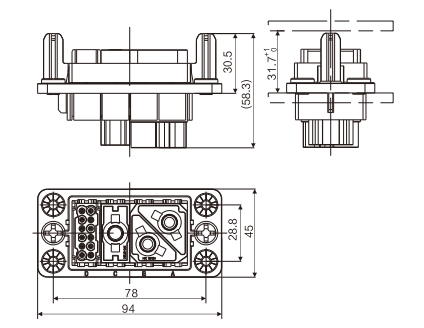

ESC-M16B-(3C150+12C10) Plug (Pin) End

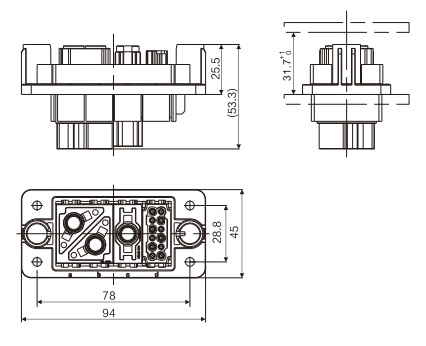

ESC-M16B-(3C150+12C10) Socket (Jack) End

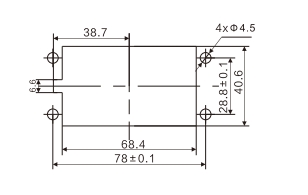

ESC-M16B-(3C150+12C10) Opening Size
