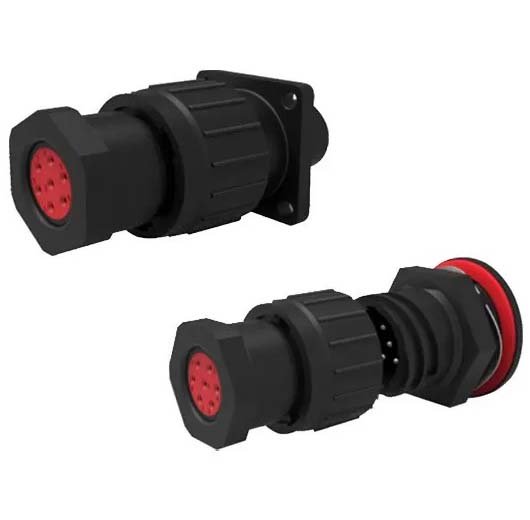

YG909 Signal Transmission Cable Connector 7 Pins

Signal cable connector YG909 is designed with 7 pins and different current ratings to accommodate different cable sizes. The rated voltage is 24V and the insulation resistance is high (≥5000MΩ), ensuring reliable transmission for various applications.
Products Inquiry

PRODUCT INFORMATION

Application:

Charger, DCDC, High Voltage Box OBC, DCDC, PDU


YG909 Signal Transmission Connector Description

  • Bayonet Coupling

  • Helical Structure

  • Cable Range: 0.5~1.5mm²

  • Poka-yoke


Transmission Cable Connector YG909 Parameters

  1. Number of Pins: 7

  2. Rated Current: 5A(0.5mm²), 5A(0.75mm²), 8A(1mm²), 10A(1.5mm²)

  3. Rated Voltage: 24V

  4. Insulation Resistance: ≥5000MΩ

  5. Dielectric Withstanding Voltage:1000V AC

  6. Temperature Range: -40℃~+125℃

  7. Protection level IP Code: IP67

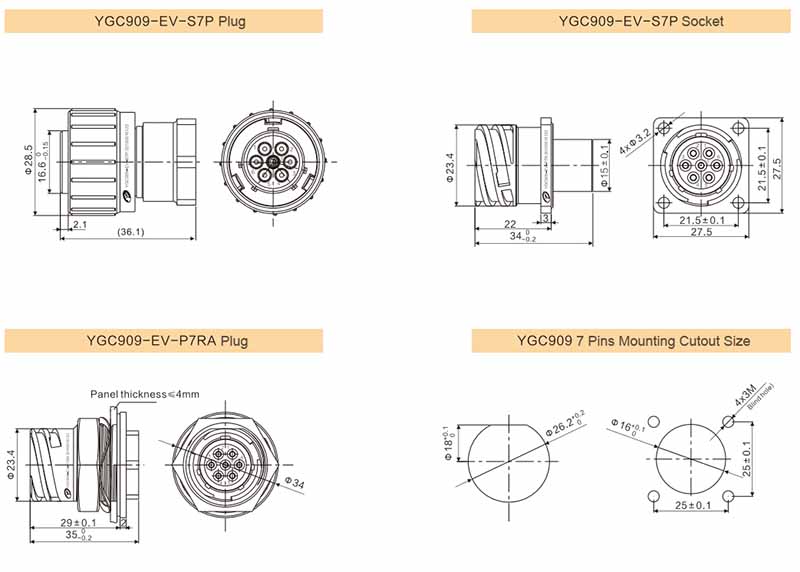

yg909 signal cable connector.png
