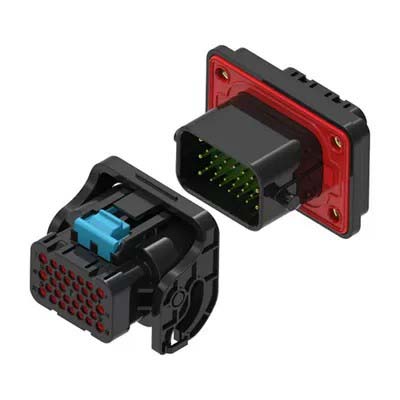

YG1024 32 Pin Multi-Pin Singal System Transmission Connector

Multi-pin 32 pins YG1024 signal transmission connector is specially designed for signal systems and has a secondary locking function to enhance safety. Cable range is 0.5mm² to 1.5mm².
Products Inquiry

PRODUCT INFORMATION

Application

Signal System


YG1024 Singal Transmission Connector Description

  • Secondary Lock Function

  • Cable Range: 0.5~1.5mm²

  • Poka-yoke


Performance Parameters

  • Number of Pins: 32

  • Rated Current: 5A~10A

  • Rated Voltage: 24V

  • Insulation Resistance: ≥2000MΩ

  • Dielectric Withstanding Voltage: 1000V AC

  • Temperature Range: -40℃~+125℃

  • Protection level IP Code: IP67

  • Mechanical life: 50times

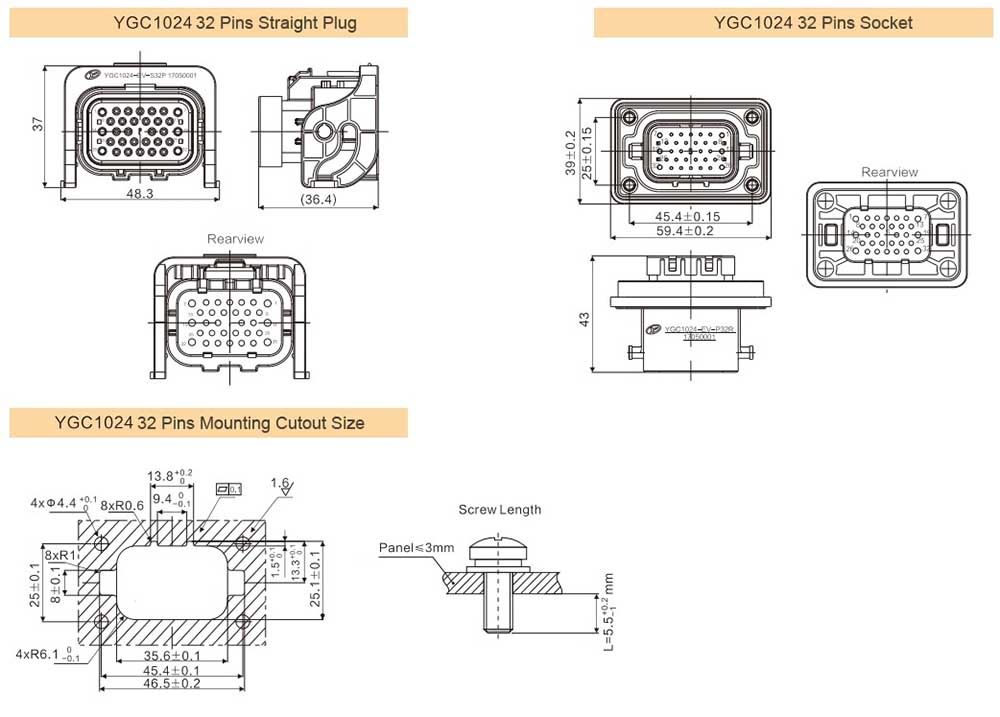

YG1024 Singal Connector.jpg
