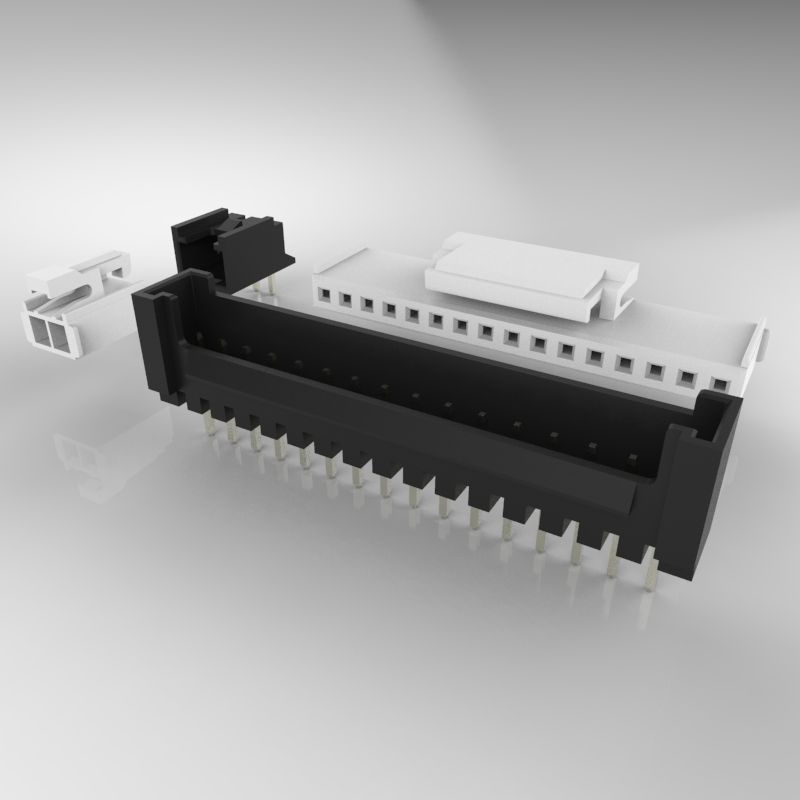

PIP/PIH-Through Hole Reflow Soldering

Check PIP/PIH through-hole reflow soldering connectors, designed for high-reliability applications in automotive, industrial, and power systems. Combining through-hole mechanical strength with reflow soldering efficiency, these connectors ensure robust connections in high-vibration, high-temperature environments. Explore their dual-process compatibility, extended durability, and compliance with automotive-grade standards for critical PCB assemblies. For more PIP/PIH-through hole reflow soldering connector series, please contact us directly.
Products Inquiry

PRODUCT INFORMATION


Recommended Product for PIP/PIH-Through Hole Reflow Soldering Connectors:


A2008WR-2P-P-LCP-D22

2.00mm(.079in)Pitch , Header , Header , Right-Angle , Single Row , 2 Circuit , Brass , LCP UL94V-0 , Tin(Sn) Plating , Beige , Bag


Product Subcategory: A2008 Series

Pitch: 2.00mm(.079in)

Temperature Range - Operating: -40℃~105℃

Material - Metal: Brass

Material - Resin and Flammability: LCP UL94V-0

Current - Maximum per Contact(Max)(A): 3

UL/cUL: E326732

Plating: Tin(Sn) Plating

Voltage - Maximum(VAC/DC): 250
